Concrete vibrator nozzle concrete vibrator head with 32mm/38mm/45mm/60mm/70mm
1.Japanese type vibrator shaft,
2,Korean type vibrator shaft ,
3.Dynapac type vibrator shaft,
4.Chinese type vibrator shaft,
38mm diameter concrete vibrator shaft with butterfly/Janpanese type
concrete poker vibrator shaft
vibrator poker shafts
Electric motor concrete vibrator shaft
We are an expert manufacturer of concrete vibrators,the concrete could match flexible shafts and flexible tubes.
rich expertise and advanced manufacturing equipments ensures the reliable quality, which being sold to all over China and exported to many countries including Europe, Japan, Korea , and Malaysia etc.

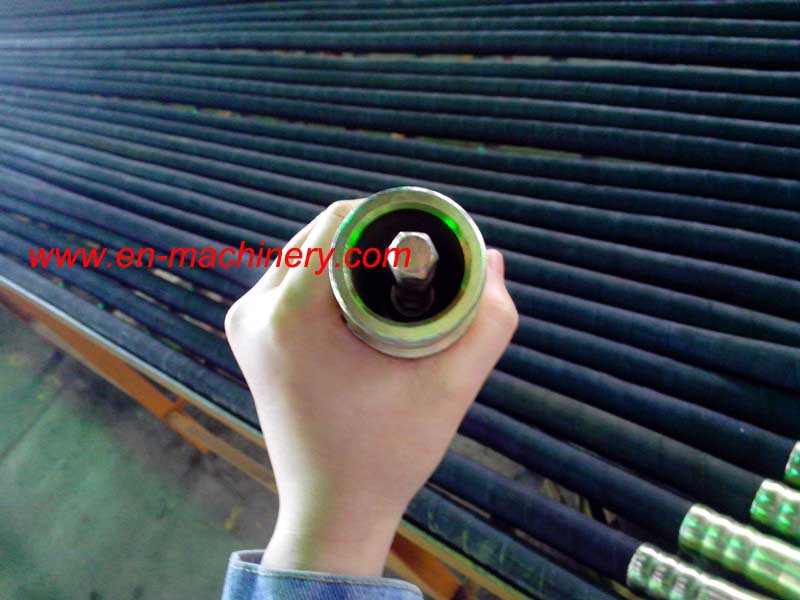

| It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.
Model
|
Outer.dia
|
Inner.dia
|
Rubber tensile
|
Adhensive of inner rubber
| Steel belt material
|
Steel belt hardness
|
Rubber hardness
|
Steel wire braid
|
Min.bending radius(mm)
|
JYG16
|
16mm
|
9mm
| >1000 N/
| 50-60
N/
| 40Mn-65Mn
| 20HRC-30HRC
| 50-62
|
1
|
75
| | JYG20 |
20mm
|
10mm
|
1
|
80
|
JYG22
|
22mm
|
10mm
|
2
|
80
| | JYG24 |
24mm
|
13mm
| 60-65
| 20Mn-65Mn
| 75-80
| according to the
demand
|
100
|
JYG30
|
30mm
|
16mm
|
120
| JYG32
|
32mm
|
18mm
|
150
| JYG36
|
36mm
|
20mm
|
200
| | JYG42 |
42mm
|
25mm
|
250 | |
| Model | ZN25 | ZN35 | ZN38 | ZN50 | ZN70 |
| Vibrating Head Diameter(mm) | 25 | 35 | 38 | 50 | 70 |
| Vibrating Frequency(Hz) | 220 | 200 | 200 | 200 | 200 |
| Vibrating Amplitude(mm) | 0.7 | 0.9 | 1.0 | 1.0 | 1.2 |
| Motor Speed(r/min) | 4000 | 4000 | 4000 | 4000 | 4000 |
| Length(m) | 4-12 | 4-12 | 4-12 | 4-12 | 4-12 |
| Weight(kg) | 6 | 9 | 11.5 | 12.5 | 14 |
You may also interested in other products,mini concrete mixer,vibratory road roller
