Surface concrete vibrator concrete vibrator for sale concrete vibrator rod
Internal concrete vibrator has the new design ,high speed with quality!
Specifications
1 on sale vibrator shaft hose
2 concrete vibrator shaft /needle/ rod
3 Dia.: 25mm,32mm,35mm,45mm,50mm,60mm,70mm
4 quick delivery
5 competitive price
| It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.
Model
|
Outer.dia
|
Inner.dia
|
Rubber tensile
|
Adhensive of inner rubber
| Steel belt material
|
Steel belt hardness
|
Rubber hardness
|
Steel wire braid
|
Min.bending radius(mm)
|
JYG16
|
16mm
|
9mm
| >1000 N/
| 50-60
N/
| 40Mn-65Mn
| 20HRC-30HRC
| 50-62
|
1
|
75
| | JYG20 |
20mm
|
10mm
|
1
|
80
|
JYG22
|
22mm
|
10mm
|
2
|
80
| | JYG24 |
24mm
|
13mm
| 60-65
| 20Mn-65Mn
| 75-80
| according to the
demand
|
100
|
JYG30
|
30mm
|
16mm
|
120
| JYG32
|
32mm
|
18mm
|
150
| JYG36
|
36mm
|
20mm
|
200
| | JYG42 |
42mm
|
25mm
|
250 | |

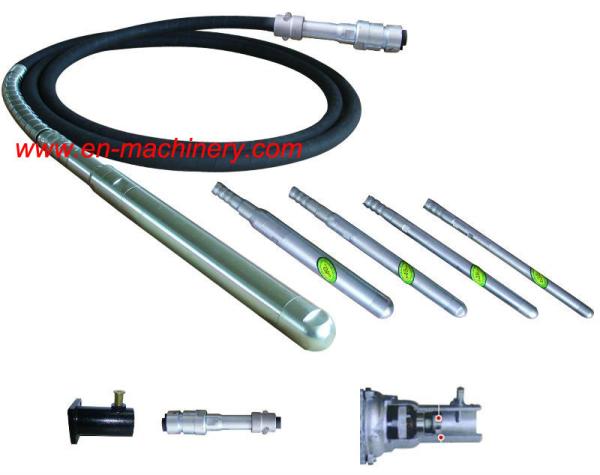

Concrete vibrator shaft
Internal concrete vibrator
| Model | | ZN35 | ZN50 | ZN70 |
| Vibrating spear | Diameter (mm) | 35 | 50 | 70 |
| Vibrating Frequency(HZ) | 200 | 183 | 183 |
| Vibrating Amqlitude(mm) | 0.8 | 1 | 1.2 |
| Weight(KG) | 3 | 5 | 8 |
| Flexible axie&hose | Flexible axis Dia.(mm) | 10 | 13 | 13 |
| Hose Dia.(mm) | 30 | 36 | 36 |
| Length(mm) | 4000 | 4000 | 4000 |
| Electromotr | Power(KW) | 1.1 | 1.5 | 2.2 |
| Voltage(V) | 380 | 380 | 380 |
| Rotate speeed(rpm) | 2840 | 2840 | 2840 |
| Overall Dimensions | L×W×H(mm) | 320×180×280 | 320×180×280 | 320×180×280 |
| Gross | (kg) | 16 | 17 | 19 |
You may also interested in other products,mini concrete mixer,vibratory road roller
Contact us:
Sales Manager: Jessica
E-mail:sales@en-machinery.com
www.en-machinery.com
Wechat:0086-(0)13857868709
|
|

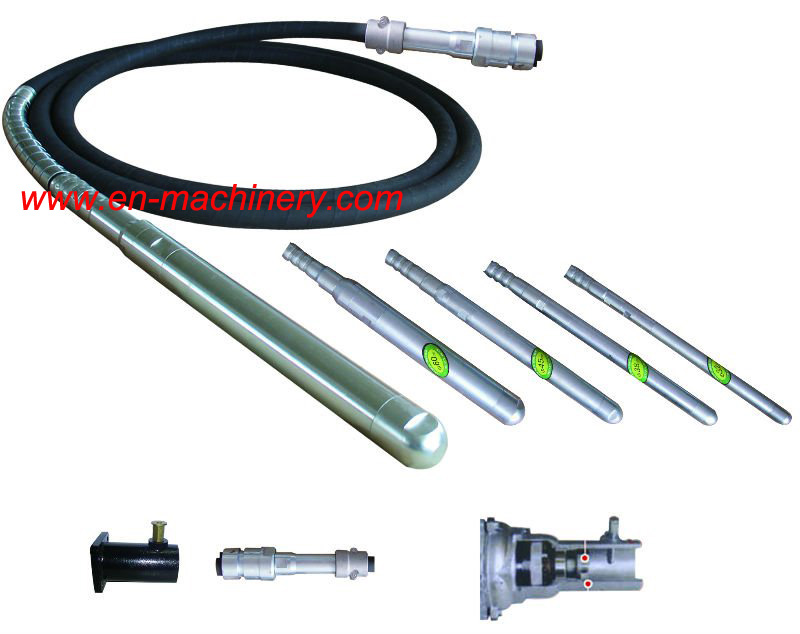

Surface Concrete Vibrator Concrete Vibrator For Sale Concrete Vibrator Rod Images
|
